Brand:
TOB NEW ENERGYitem no.:
TOB-32140-C-Naorder(moq):
1Payment:
L/C, T/Tproduct origin:
Chinashipping port:

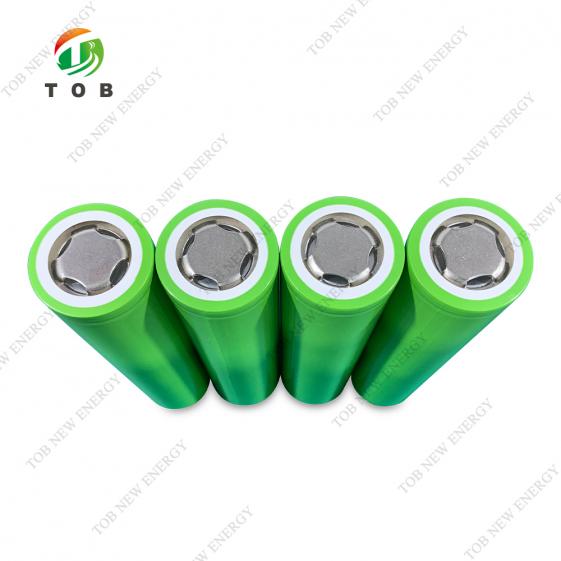

XIAMEN32140 Sodium ion Cells for Sale
SPECIFICATIONS
| No. | Item | Standard | Remark |
| 1 | Nominal capacity @4.0~2.0V | 10.0Ah | 0.5C discharge @25℃ |
| 2 | Rated voltage | 3.05V | |
| 3 | AC resistance | ≤3mΩ | AC 1 kHz, 3.2V |
| 4 | DC Resistance | ≤10mΩ | 2C 30s, 3.2V |
| 5 | Weight | 270±5g | |
| 6 | Size |
Diameter: 33.2±0.2mm Height: 140±0.3mm |
|
| 7 | Charging cut-off voltage | 3.95V | T≥45℃ |
| 4.0V | 0℃<T<45℃ | ||
| 3.9V | -10℃≤T≤0℃ | ||
| 3.8V | -20℃≤T<-10℃ | ||
| 8 | Charging cut-off current | 500mA (0.05C) | T>0℃ |
| 1000mA (0.1C) | T≤0℃ | ||
| 9 | Discharge cut-off voltage | 2.0V | Can be discharged to 0V |
| 10 | Standard continuous charging current | 5000mA | 0.5C |
| 11 | Maximum continuous charging current | 30000mA |
3C CC to 4V charging capacity>90% Temperature rise<20℃ |
| 12 | Standard continuous discharge current | 5000mA | 0.5C |
| 13 | Maximum continuous discharge current | 30000mA |
3C CC to 2V discharge capacity>90% Temperature rise<20℃ |
| 14 | Capacity | ≥110Wh/kg |
Electrical characteristics
Charging performance
|
Items |
Subitem |
Battery surface temperature |
Standard Charging |
Rapid Charging |
Pulse charging |
|
Charging performance |
Temperature and charging performance |
＞70℃ |
Not allowed to charge |
||
|
45~70℃ |
0.5C |
2C |
Not allowed to charge |
||
|
30-45℃ |
0.5C |
3C |
5C, SOC≤40%，time＜8min |
||
|
15-30℃ |
0.5C |
1C |
3C, SOC≤50%，time＜15min |
||
|
0-15℃ |
0.33C |
0.5C |
Not allowed to charge |
||
|
-10~0℃ |
0.2C(3.9V)80%SOC |
Not allowed to charge |
|||
|
-20~-10℃ |
0.1C(3.8V)75%SOC |
Not allowed to charge |
|||
|
|
|||||
|
Subitem |
Battery surface temperature |
Product specifications |
Conditions |
||
|
Ratio |
25℃±2℃ |
Charging capacity ≥95% rated charging capacity |
2C CC to 4V Temperature Increase≤8℃ |
||
|
25℃±2℃ |
Charging capacity ≥90% rated charging capacity |
3C CC to 4V Temperature Increase≤15℃ |
|||
Discharge performance
|
Item |
Parameter |
Performance |
Conditions |
||
|
Discharge performance |
Temperature and discharge capacity |
-30℃ |
≥75% |
After being left for 12 hours, the capacity under standard discharge current is compared with the nominal capacity. |
|
|
-20℃ |
≥85% |
||||
|
0℃ |
≥90% |
||||
|
25℃ |
≥100% |
||||
|
45℃ |
≥100% |
||||
|
60℃ |
≥95% |
||||
|
Discharge temperature range |
-30℃~70℃ |
Whenever the battery temperature is not within this range, stop immediately. |
|||
|
Rate discharge capability |
Standard discharge current |
0.5C |
≥100% |
25℃，Relative capacity under standard charge and discharge |
|
|
Max. continuous discharge current |
3C |
≥90% |
25℃，Relative capacity under standard charge and discharge |
||
|
Max. discharge current (long time) |
10C |
30S |
25℃＜Battery surface temperature＜60℃，SOC＞50% |
||
|
Max. discharge current (short time) |
15C |
3S |
25℃＜Battery surface temperature＜60℃，SOC＞50% |
||
Storage performance
|
Item |
Subitem |
Parameter |
Performance |
Conditions |
|
|
Storage performance |
Short term |
Ultra-high temperature storage |
Retention rate |
≥90% |
Measure battery capacity at 25°C，Store at 75℃ for 3 days，100%SOC |
|
Recovery rate |
≥98% |
||||
|
High temperature storage |
Retention rate |
≥90% |
Measure battery capacity at 25°C，Store at 45℃ for 7 days，100%SOC |
||
|
Recovery rate |
≥98% |
||||
|
Low temperature storage |
Retention rate |
≥95% |
Measure battery capacity at 25°C，Store at -20℃ for 7 days，100%SOC |
||
|
Recovery rate |
≥98% |
||||
|
Long term |
High temperature storage |
Retention rate |
≥90% |
Measure battery capacity at 25°C，Store at 35℃ for 90 days，40%SOC |
|
|
Recovery rate |
≥98% |
||||
|
Low temperature storage |
Recovery rate |
≥98% |
Store at 25±5℃for 180 days，40%SOC |
||
Battery service life
|
Item |
Parameter |
Performance |
Conditions |
Remark |
|
Battery service life |
High temperature cycle |
≥1200 |
45℃，0.5C，2~3.95V，Capacity retention rate≥70% |
It depends on the usage conditions. At high temperatures, it is recommended to reduce DOD usage and not charge at constant voltage to extend the service life. |
|
Normal temperature cycle |
≥3000 |
25℃，0.5C，2~4V，Capacity retention rate≥70% |
||
|
Rate cycle |
≥1500 |
25℃，2C not constant voltage，Capacity retention rate≥70% |
||
|
Normal temperature over-discharge characteristic cycle |
100 |
25℃，0.5C，0~4V cycle，Capacity retention rate≥95% |
Battery usage instructions
Temperature gradient charging solution
|
Max. charging rate |
SOC |
Temperature gradient |
||||||
|
-20℃~-10℃ |
-10℃~0℃ |
0℃~10℃ |
10℃~20℃ |
20℃~45℃ |
45℃~55℃ |
55℃~70℃ |
||
|
100% |
/ |
/ |
0.05 |
0.05 |
0.05 |
0.05 |
/ |
|
|
90% |
/ |
0.05 |
0.20 |
0.75 |
0.50 |
0.50 |
0.50 |
|
|
80% |
0.05 |
0.20 |
0.50 |
0.75 |
3.00 |
1.00 |
0.50 |
|
|
70% |
0.10 |
0.20 |
0.50 |
0.75 |
3.00 |
1.00 |
0.50 |
|
|
60% |
0.10 |
0.20 |
0.50 |
0.75 |
3.00 |
1.00 |
0.50 |
|
|
50% |
0.10 |
0.20 |
0.50 |
0.75 |
3.00 |
1.00 |
0.50 |
|
|
40% |
0.10 |
0.20 |
0.50 |
0.75 |
3.00 |
1.00 |
0.50 |
|
|
30% |
0.10 |
0.20 |
0.50 |
0.75 |
3.00 |
1.00 |
0.50 |
|
|
20% |
0.10 |
0.20 |
0.50 |
0.75 |
3.00 |
1.00 |
0.50 |
|
|
10% |
0.10 |
0.20 |
0.50 |
0.75 |
0.75 |
0.50 |
0.50 |
|
|
0 |
0.10 |
0.20 |
0.50 |
0.50 |
0.50 |
0.50 |
0.50 |
|
Transportation
The battery's shipping state of charge is 30%~50% SOC. Batteries should be packed into boxes for shipping. During transportation, it should be prevented from severe vibration, impact or extrusion, protected from sun and rain, and must not be turned upside down.
During the loading and unloading process, products should be handled with care, and strict precautions should be taken to prevent throwing, rolling, and heavy pressure.
Storage
Batteries stored for longer than 6 months must be placed in a dry and ventilated place. The storage state of charge is 20%~50% SOC, and the battery is charged and discharged every 6 months.
Precautions
a) Do not put the battery into fire or heat it.
b) Do not short-circuit or overcharge the battery.
c) Do not subject the battery to excessive mechanical impact.
d) Do not immerse the battery in sea water or water, or allow it to absorb moisture.
e) Do not reverse the positive and negative poles of the battery.
f) Do not disassemble or repair the battery.
g) Do not cause the battery to be significantly damaged or deformed.
h) Do not touch the leaking battery directly.
i) Keep batteries away from children.
j) Do not needle, hammer or step on the battery.
k) Do not hit or throw the battery.

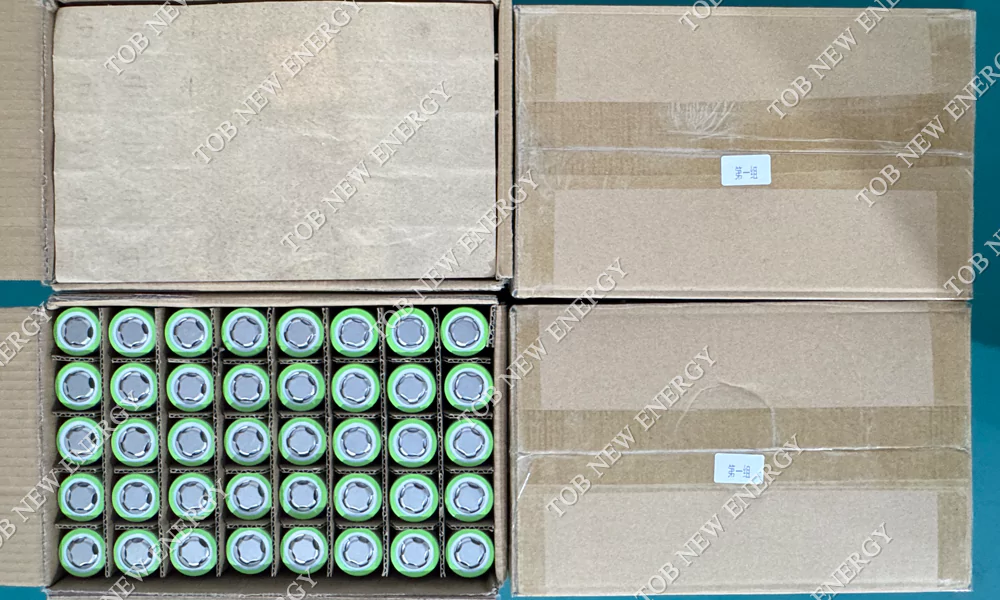

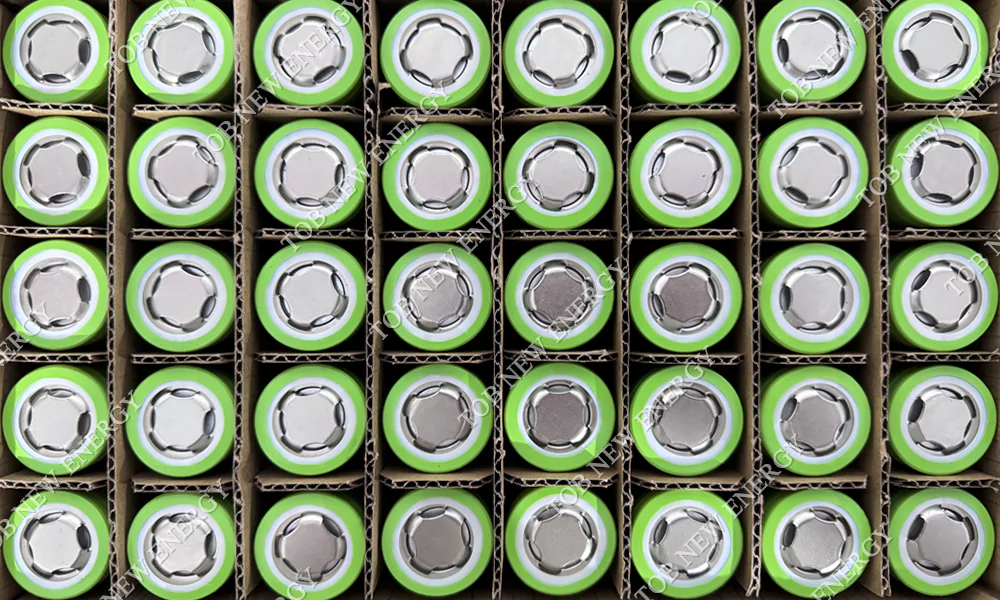

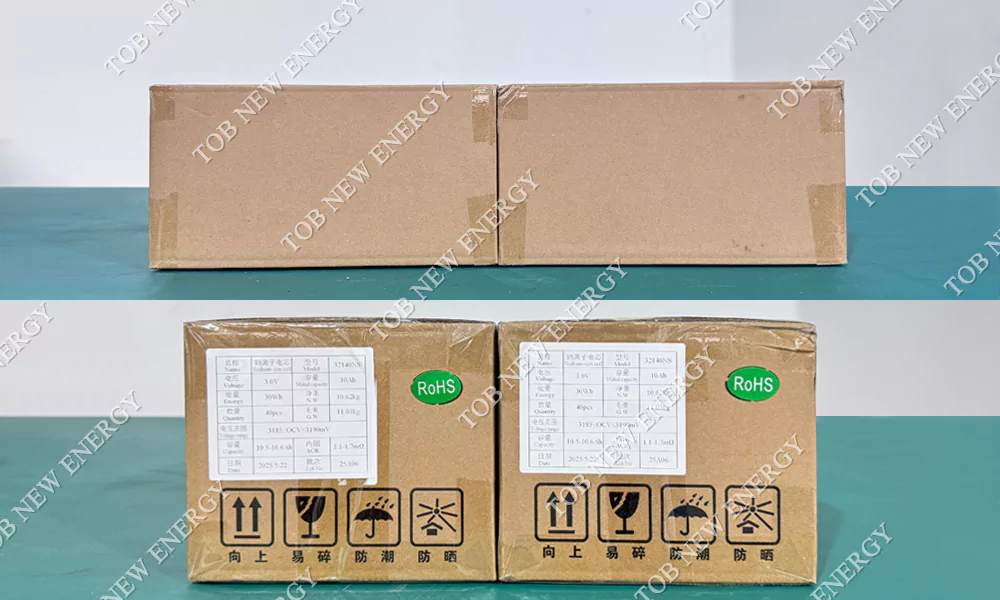

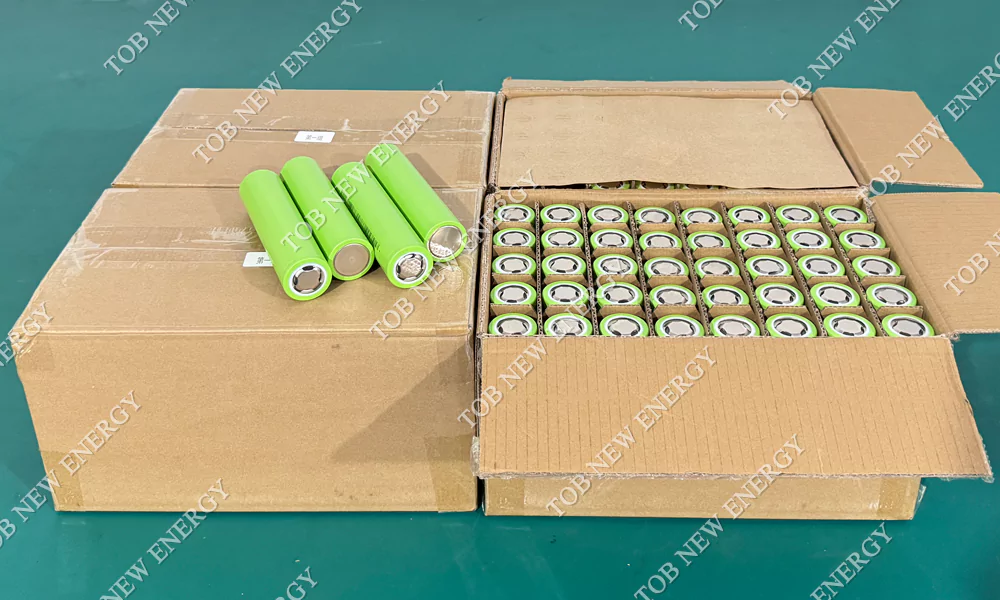

PRODUCT DISPLAY
