73174207 Prismatic Cell
Loading...
73174207 Prismatic Cell 73174207 Prismatic Cell 73174207 Prismatic Cell 73174207 Prismatic Cell 73174207 Prismatic Cell

Sodium ion 73174207 Prismatic Cell for Sale

TOB New Energy provides TOB-73174207-Na-P high performance sodium ion prismatic cell for sale.

  • Brand:

    TOB NEW ENERGY

  • item no.:

    TOB-73174207-Na-P

  • order(moq):

    1

  • Payment:

    L/C, T/T

  • product origin:

    China

  • shipping port:

    XIAMEN
inquiry now
Product Detail

Sodium ion 73174207 Prismatic Cell for Sale

SPECIFICATIONS

Basic parameter

Item Standard Unit Remark
Nominal capacity@3.95~2.0V 200 Ah 0.33C @25℃
Nominal voltage 3 V /
Ac internal resistance ≤0.25 mΩ AC 1kHz, 3.0V
Dc internal resistance ≤0.8 mΩ 2C 30s, 3.0V
Battery weight 5±0.2 kg /
Battery size Thickness：72±0.5
Width：173.7±0.7
Height（Without post terminal）：204±0.5
Height（with post terminal）：207±0.5 		mm Overall dimensions and thickness are tested under the pressure of 300±20kgf.
Charge cut-off voltage 3.95 V T>0℃
3.65 0℃≥T≥-10℃
3.4 -10℃>T≥-20℃
Discharge cut-off voltage 2 V Can be discharged to 1.5V
Standard continuous charge current 66 A 0.33C
Maximum continuous charge current 200 A 1C
Standard continuous discharge current 66 A 0.33C
Maximum continuous discharge current 200 A 1C
Energy density ≥120 Wh/kg /

Electrical performance parameters

Charge performance

Item Sub-item Battery surface temperature Maximum charge multiplying power (continuous)
Charge performance Typical temperature and discharge capacity >60℃ No charging
35℃<T≤60℃ 0.5C
20℃<T≤35℃ 1.0C
10℃<T≤30℃ 0.5C
0℃<T≤10℃ 0.25C
-10℃<T≤0℃ 0.1C
-20℃<T≤-10℃ 0.1C
 
Sub-item Battery surface temperature Product specification Condition
Magnifying power 25℃±2℃ Charging capacity≥90% of nominal charging capacity 1C constant current charging to 3.95V; Temperature rising≤15℃


Discharge performance

Item Parameter Performance index Condition
Discharge performance Typical temperature and discharge capacity -40℃ ≥70% 0.33C magnification, put aside for 12h, relative to the nominal capacity.
-30℃ ≥75%
-20℃ ≥85%
0℃ ≥95%
45℃ ≥98%
60℃ ≥95%
Discharge temperature interval -40℃~60℃ Whenever the battery surface temperature exceeds this interval, it should stop working.
Magnifying discharge capacity Standard discharge current 0.33C 100% 25℃，standard charge-discharge relative capacity
Maximum continuous discharge current 1C ≥95% 25℃，standard charge-discharge relative capacity
Other discharge current 0.5C ≥97% 25℃，standard charge-discharge relative capacity


Storage performance

Item Sub-item Parameter Performance index Condition
Storage Short-term High temperature storage conservationrate ≥92% Nuclear capacity at 25℃, storage at 45℃ for 7 days, 100%SOC.
recovery rate ≥99%
Cryogenic storage conservation rate ≥95% Nuclear capacity at 25℃, storage at -20℃ for 7 days, 100%SOC.
recovery rate ≥99%
Long-term Normal temperature storage recovery rate ≥95% (28d≥98%) Storage at 25℃±5℃ for 180 days, 50%SOC


Cycle life

Item Parameter Performance index Condition Remark
Working life High temperature cycle ≥1500 45℃，0.33C，capacity retention rate≥70% Depending on the working conditions.
Normal temperature cycle ≥3500 25℃，0.33C，capacity retention rate≥70%
≥4000 25℃，0.33C，2~3.9V（95%DOD）capacity retention rate≥70%
Magnifying cycle ≥1500 25℃，1C，capacity retention rate≥70%

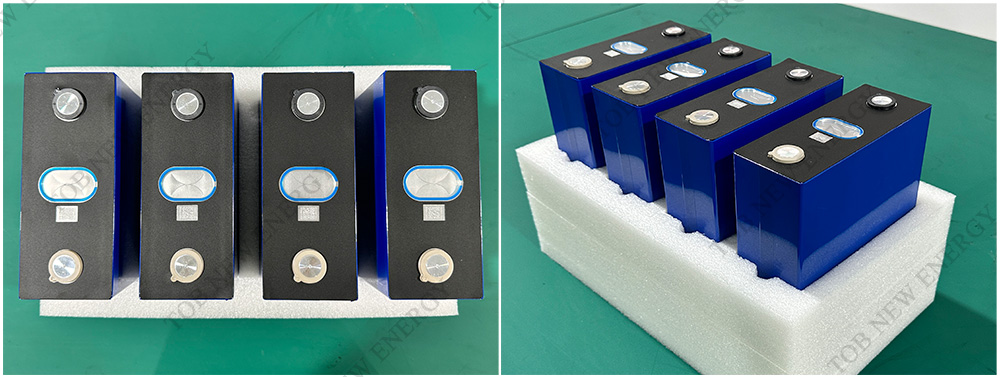

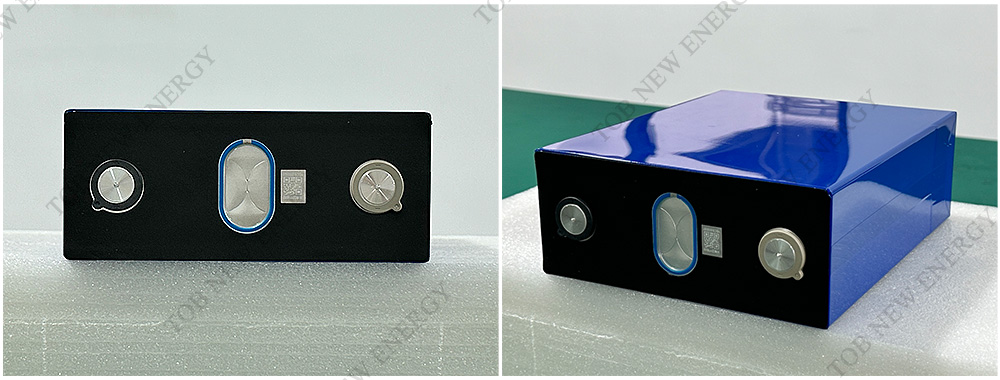

PRODUCT DISPLAY

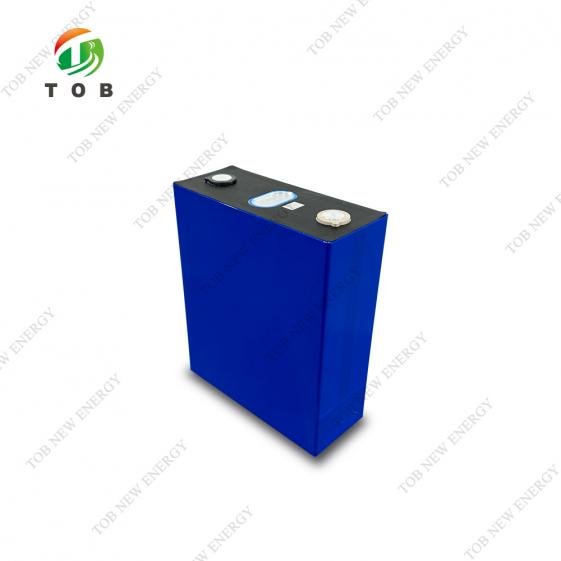

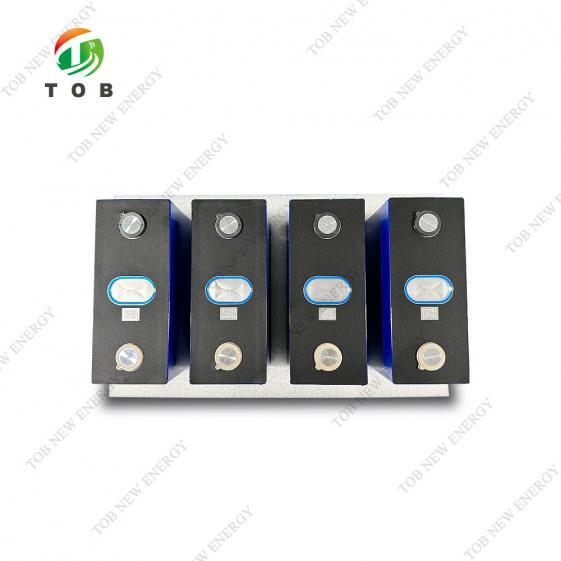

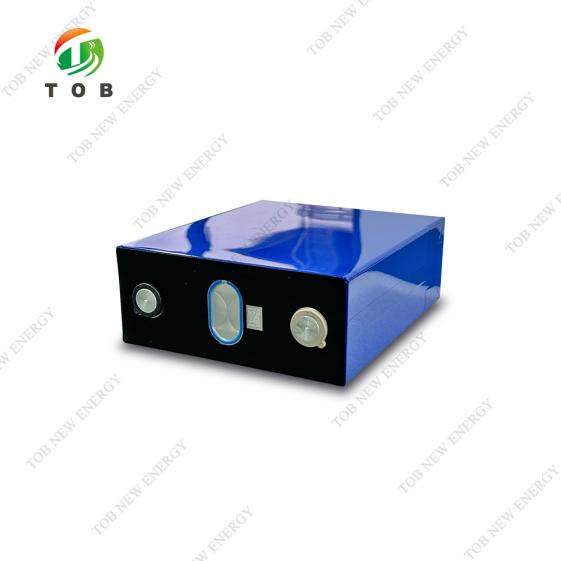

Sodium ion 73174207 Prismatic Cell

Sodium ion cell
