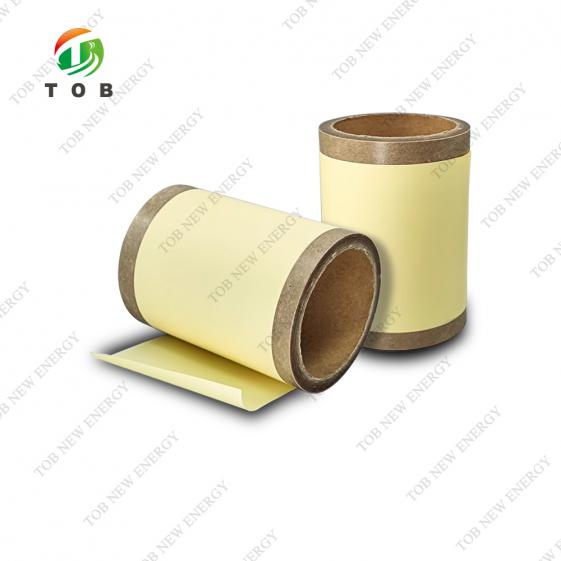

Polyimide PI Separator for Solid-state Battery

This TOB-PIP40-1(TOB-PIP40-10) polyimide PI separator has outstanding high temperature resistance, and its long-term use temperature can reach 530°C, which gives the diaphragm good thermal dimensional stability and improves the safety of high-temperature use of the battery.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-PIP40
  • order(moq):

    1m
  • Payment:

    L/C, T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

Polyimide PI Separator for Solid-state Battery

High-Temperature Resistant Thermally Stable NCM811 PI Separator Material


SPECIFICATIONS(TOB-PIP40-1, TOB-PIP40-10)


Features

1. High-temperature resistance: Exceptional safety, with a decomposition temperature up to 530°C, non-melting, and no distinct melting point.

2. Stable properties: Physical cross-linking between fibers forms a rigid support structure. The structure remains stable even after gel electrolyte filling. Under abnormal conditions such as needle puncture, the battery is ensured not to combust or explode, significantly enhancing safety.

3. High porosity: Tunable 3D microporous structure, suitable for diverse applications and compatible with different battery system configurations.


Item

Unit

Value

Thickness

um

30±5

Surface density

g/m2

3±0.5

Porosity

%

>90%

Permeability(100ml)

s

0.080(0.12bar)

Operating temperature

-160~350

Tensile strength (TD)

MPa

≥5

Tensile strength (MD)

MPa

≥25

Liquid uptake

%

>80


PI Separator
