Semi-Automatic Screen Printing Machine

This machine adopts a microcomputer type single-chip control system, a full-cast aluminum body, small, light, and high precision. It is mainly suitable for printing all kinds of small flat products, and suitable for printing on any flat material, such as glass, paper, wood, plastic, electronics and other fields.

Brand:
TOB NEW ENERGY
item no.:
TOB-SY3050-P
order(moq):
1
Payment:
L/C,T/T,Western Union, Paypal
product origin:
china

inquiry now

Product Detail

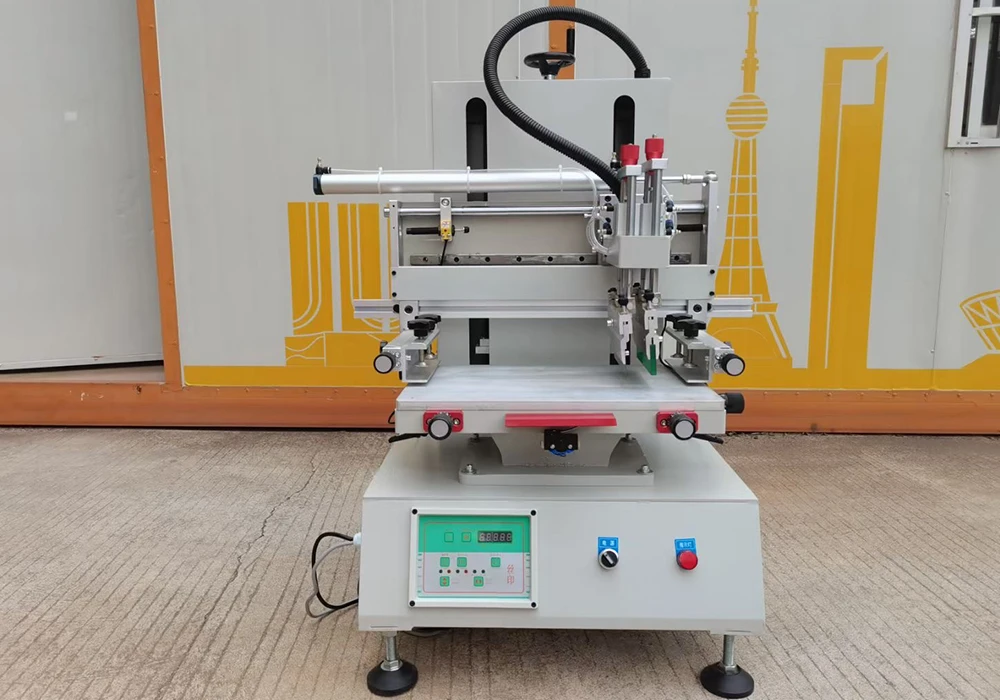

Semi-Automatic Screen Printing Machine

SPECIFICATIONS

Model	TOB-SY3050-P
Printing head speed	100-600mm/s
Max printing area	250*350mm
Max printing capacity	600-800p/h
Maximum table size	300*500mm
Printing accuracy	±0.02mm
Maximum screen frame size	400*600mm
Power supply	220V/50-60HZ two-phase three-wire
Maximum printing thickness	0-70mm
Air pressure	0.5-0.7MPa
Machine size	580420900mm
Weight	60kg

Application

Technical performance

1. The single-chip microcomputer of the small semi-automatic screen printing machine cooperates with the touch panel to compile the action program.

2. Four-digit counter to count the printing quantity.

3. Full-cast aluminum body with metal paint on the surface.

4. Double-column lifting mechanism, stable and high precision.

5. Pneumatic screen washing device.

6. Adjustable left and right stroke.

7. The angle of the scraper is adjustable.

8. The scraper constant pressure device ensures stable pressure during printing.

9. The rotation angle of the worktable front and back, left and right can be fine-adjustable.

10. The screen frame can be adjusted front and back, left and right, horizontally and vertically.

11. Suction type stainless steel table, adsorbing various film products.

12. Taiwan CEC hydraulic buffer is equipped at the top, bottom, left and right to effectively eliminate printing vibration.

13. The whole machine runs fast, stable and low noise.

14. Action mode selection: automatic, semi-automatic, manual.

15. Pneumatic mode: panel, foot switch.

16. Scraper pressure control: pressure regulating valve constant pressure.

17. Up and down drive mode: pneumatic.

18. Left and right drive mode: pneumatic.
