Substrate Conveyor Machine for Thin-film Solar Cell Production Line

This is a substrate conveyor machine for thin-film solar cell production line.

  • Brand:

    TOB NEW ENERGY

  • item no.:

    TOB-Conveyor-Series

  • order(moq):

    1

  • Payment:

    L/C,T/T

  • product origin:

    china

  • shipping port:

    xiamen
inquiry now
Product Detail

Substrate Conveyor Machine for Thin-film Solar Cell Production Line


SPECIFICATIONS

This is a substrate transmission device connecting process equipment to process equipment in solar cells production line. It adopts Siemens 1200 control system and servo motor as transmission power, precision stainless steel shaft + O-ring for roller way transmission, and use reflective photoelectric sensor to identify transmission substrate, docked with upstream connection signal, the starting point sensor senses the substrate motor drive, arrives at the deceleration point to decelerate, arrives at the end point to stop, alarm for not reaching the corresponding position, docked with downstream connection signal, the substrate is completely separated from the end point sensor then the motor stop rotation, stop automatically and alarm when downstream has fault.

1. Transverse Conveyor

Model: TOB-Conveyor-I

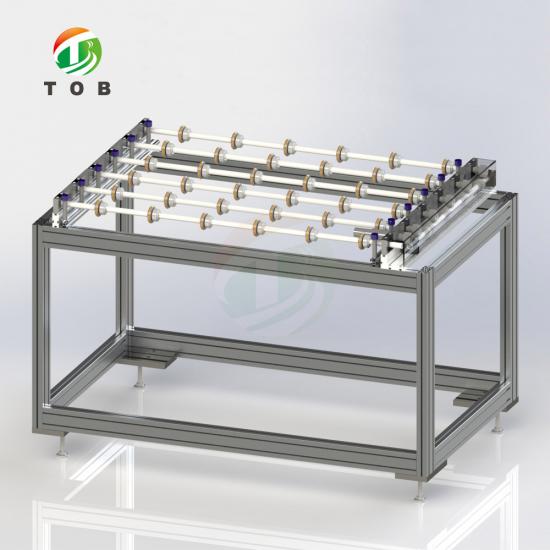

Transverse Conveyor

Transverse Conveyor


2. 90° Conveyor

Model: TOB-Conveyor-II

This conveyor machine has centered positioning + clockwise or counterclockwise rotation, fast rotation speed and No noise.

90° Conveyor


90° Conveyor


3. 90° Lifting (liftable)Conveyor

Model: TOB-Conveyor-III

This adopts frequency conversion motor to flip, and the space structure is reasonable to reach 90° completely.

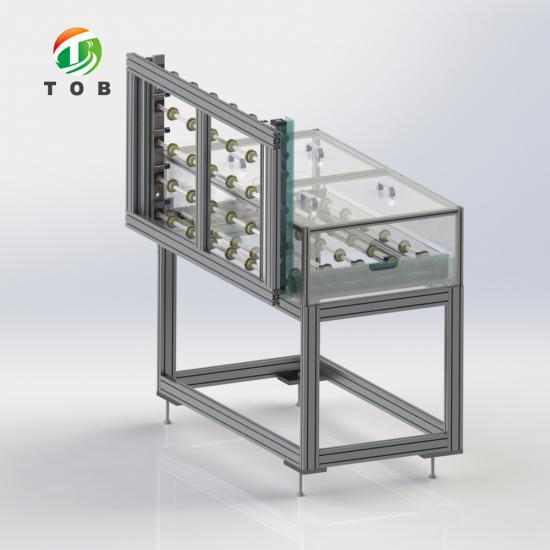

90° Lifting (liftable)Conveyor

90° Lifting (liftable)Conveyor


4. Cross conveyer

Model:TOB- Conveyor-Ⅳ

The conveyor is equipped with liftable lateral and longitudinal rollers, which enable the glass transfer direction to be changed directly without rotation.

Cross conveyer


Cross conveyer


5. Lifting and rotating machine

Model:TOB- Conveyor-V

Lifting and rotating machine


6. Pressure tester（Pressure resistance testing machine）

Model:TOB- Conveyor-VI

Pressure tester
