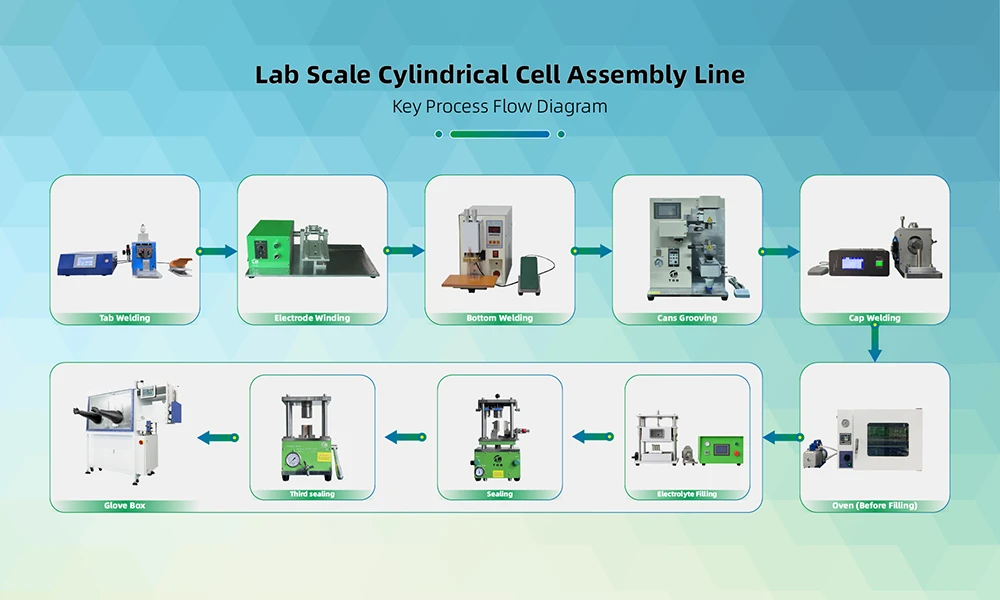

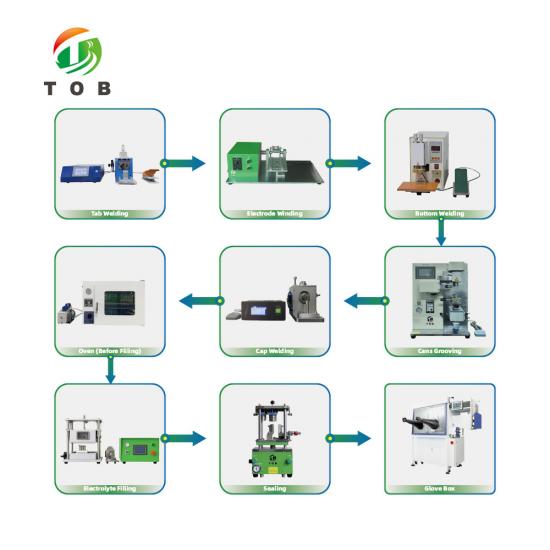

18650 Cylindrical Cell Battery Assembly Line

TOB offers the most professional semi-auto lithium-ion battery production equipment for battery manufacturing.

TOB offers the most professional automatic lithium-ion battery production equipment for battery manufacturing.

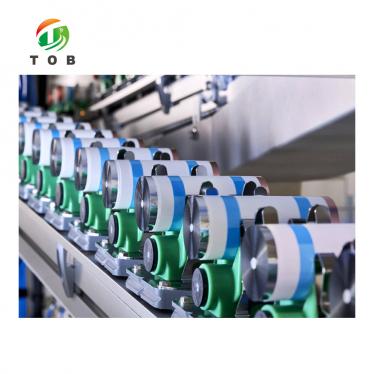

TOB offers the most professional 4680 4690 tabless lithium-ion battery production equipment for battery manufacturing.

This is a substrate transmission device connecting process equipment to process equipment in solar cells production line.

This TOB-QM-5 roll jar ball mill is ultra-fine grinding and mixing equipment for laboratory and small batch production.

This TOB-DT-16000 winding machine is a electrode winding machine for bolt supercapacitor manufacturing.

Horizontal power battery needling testing machine SPECIFICATIONS 1.Technical requirements Model Horizontal Power battery needling testing machine TOB-BE-AP-9002D Pressure range 1000N~20000N Customized Dimension W2400*D1000*H1200MM Weight 500kg Testing space W1000*D500*H500MM Customized Power 2500W Needling mode Oil pressure Needling force ±1% accuracy Needling speed 10-40MM/S, adjustable, Needling speed error ±0.1MM/S Unit Conversion Kg/N/Lb 2.Standard configuration Needling host A set Protective case A set Needling holder A set Big battery fixing clip A set White steel needle/ Tungsten steel needle A set Surveillance camera system（Optional） A set Voltage acquisition system（Optional） A set PACKAGE AND SHIPPING 1 Standard exported package : Internal anticollision protection, external export wooden box package 2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode 3 Responsible for the damage during shipping process, change the damage part for free 4 Supply with suitable voltage input and power plug according to customer's country requirements. SERVICES 1 We supply machines with battery technology support. 2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery. 3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line. 4 We can also supply a full set of battery technology for battery design, research and producing. We cooperated with each other, and we will do TOP OF THE BEST battery  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

This pneumatic spot welding machine is mainly used for 18650 cylinder cell pack welding, it can weld Nickel tab thickness from 0.02-0.2mm with good welding effect. For single point, used for Ni tab weld with steel case.
